Acceleration vs. frequency and time model

Provide for mechanical properties analysis of radio-electronic means (REMs) cabinet, rack, and block designs installed on vibration isolators, and subjected to environmental influences such as harmonic vibration, random vibration, shock, linear acceleration, acoustic noise as well as finding solutions on the basis of obtained mechanical properties to provide REM stability against mechanical influences. Such analysis allows for the identification of parameters for vibration isolators as well as parameter optimization to minimize loads in the design.

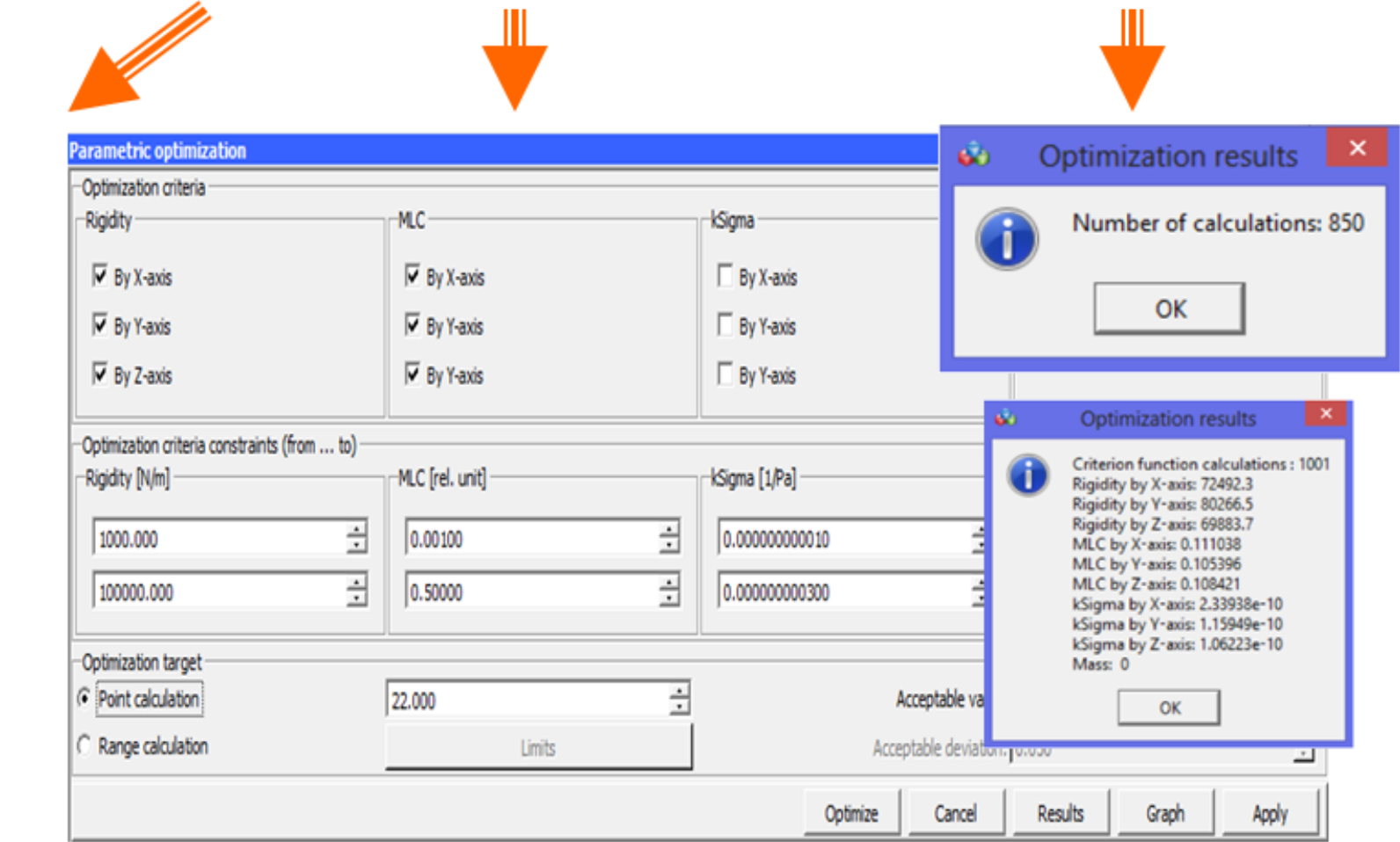

Parameter optimization results for vibration isolators

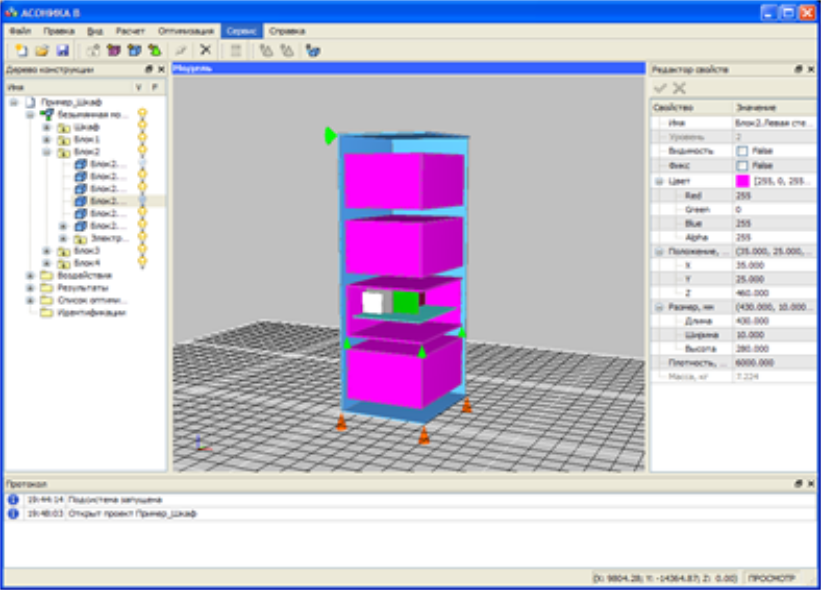

Graphical model editor

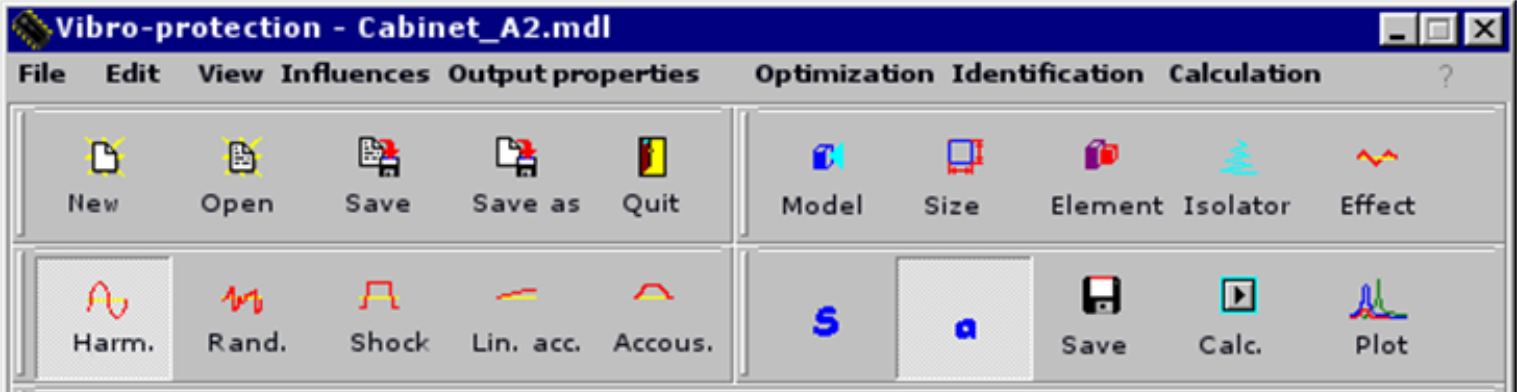

Graphical user interface used for entering mechanical influences
